ISO 9001 Procedure for Making Automotive Injection Molds

Klarm Mould

The automotive industry is flourishing with the automotive injection molding at a considerable rate. The automotive injection molding gives the benefits of low costs and better consistency. The automotive injection molding had provided with high volume. The speed and the quality are the main aspects to focus on for the molders. A company which has proper ISO 9001 system is well-managed and the business performance is very good. The ISO 9001 is well recognized all over the world in the automotive business. The product is developed after taking reviews from the team to give the best to the customers.

automotive mold
automotive mold
  1. What is ISO 9001?

The ISO 9001 ensures the quality of the products and the companies should maintain the quality of the ISO 9001 certification. There are many standards in the ISO 9000 group where only ISO 9001 is needed to be certified. For the certification, you need to fulfill the conditions in the sections. There are in total ten sections of the ISO 9001. The sections from four to ten cover the area of quality management. The sections include various things related to the business such as the process, standards of the product and risks in the production. The sections also take a look at the scope of the business and the investors. The revised plan of the company is required for the certification of the ISO 9001.

  1. ISO 9001 Benefits and Goals

The companies are always in search of recognized molders for the supply of the products. With the ISO 9001, the employees should be trained in a specific process and they should be documented lawfully. Many automotive injection molds had processes which were not needed in the production and they were identified. The ISO 9001 standard is effective when there are disputes with the customers. The standard drives the molders to the growth and development of the molders. The software and spreadsheets have made it easy for the option of direct business. The companies with the standardized ISO 9001 certification are known to provide customer satisfaction than the companies who do not have the certification. They are also often observed to have higher profit margins in their businesses because of the constant improvements in the technology.

  1. Risk Identification

The ISO 9001 focuses on the risks for the customers as well as for the molders towards reducing the risk factor. Some of the risks include the injuries to the workers which is taken care of very keenly, the standard focuses on the impacts that the business can cause to the environment. It also covers the factor that the employees should be well-trained for the job. The purchasing of the right raw material is important for the quality of the product which should be taken care of. The company has to ensure that everything is documented and this helps to identify some of the challenges for the company.

The automotive mold china maker is ISO 9001 standardized with high-quality products. The injection mold China company has been manufacturing various parts across the country as well as in the global market. China plastic injection molding is highly trusted by the customers.

The original source of this article is from https://www.injectionmouldchina.com.

EDM machine for injection mold making

THE IMPORTANCE OF MOLDING FLOW ANALYZE BEFORE MAKING INJECTION MOLDS

Klarm Mould

The injection mold is a method by which parts of an object is produced on large scale. Possibly the pen kept on the table near you is made through injection molding. Injection mold maker in China and countries expert in this technique have a good hold over manufacturing sector. There are many processes throughout the injection molding, which requires analyzing the cost, time and raw materials. One of the important pre-molding processes would be molding flow analysis.

EDM machine for injection mold making
EDM machine for injection mold making

Molding flow analysis helps to examine mold design thoroughly. It is pre-analysis of the product manufacturing process with the help of software. Molding flow tries to come to a pre-conclusion of the temperature required to melt the plastics or steel, of the amount required to fill in the cavity and deciding the wall thickness of the object. For example, if due to any reason the wall of the object is too thick it would not cool properly and there would be sink marks that will not look good.

Molding flow analysis is a pre-manufacturing process which not only reduces the cost, it saves the time of the organization and it helps to manufacture parts, objects in a successful way. Suppose without a flow analysis if a prototype is manufactured and it shows some fault, then it needs to be started all again. The design of the tool needs to be changed and there would be enormous wastage of time and energy. Therefore, to control all these mishappenings a molding flow analysis is done.

A company expert in this technique of mold, injection considers flow analysis a necessary pre-requisite. There are various manufacturing companies which are an expert in 3D designing of objects and they are also an expert in designing tool according to the desired wishes. That is why Southeast countries molds and supplies the parts in all over the world especially North America and Europe.

Now, coming again to the molding flow analysis, it examines the flow of melted metal or plastic through channels and tells the quantity to be added or to reduce before manufacturing the parts. It is easy to cut the metal scrap from the object, but it is very hard to add metals due to their characteristics into the parts. For that, a whole new design is carved for the tool which overruns the manufacturing cost and time. All these problems can be averted through proper mold flow analysis.

Injection molding is altogether an expert technique which requires technical knowledge and years of experience in the field. Southeast Asia is considered such an expert especially in plastic injection molds and it is aptly called as an injection molding hub. It supplies, parts being used in healthcare equipment, automotive, electronics and home appliances. Almost everything is being manufactured in countries of this region through injection molding.

Injection molding has made the process of manufacturing an easy task compared to earlier days where the heavy objects were manufactured in one go and where the technologies like flow analysis were not common. Injection molding has turned the pace of economy in a great way.

Original source is from https://www.injectionmouldchina.com, which is a professional plastic injection mold maker in China. China injection molding is considered to be the best in the world.

transparent injection mold

Difficulties of making injection molds of transparent plastic products

Klarm Mould

Making injection mold is a difficult process. Even small mistakes can cost you almost a fortune. Such work should be done with immense attention and prior experience. While making, injection molds one faces many problems like the machine, the mold, but most of the trouble arises due to the plastic. Many people today are opting for plastic and its demand is increasing, but we cannot overlook the difficulties of transparent plastic products in making injection molds. Use of plastic in making injection modules is difficult. There are several reasons behind this. First, the process through which the plastic goes through is a tough one. It passes to the heating cylinder from the hopper on the way into the cavity. After facing such dreadful situations, its shape and size are ought to change. Other reasons are that the valve spring may leak or the heater band might be burned.

transparent injection mold
transparent injection mold

The kind of plastic you choose for your mold could also create problems. If you choose wrong plastic it can affect your material adversely. In case you think that all plastics are the same, then you are wrong. They are not. It is important to learn first about your material, your work design about it, its peculiarities. Making all these decisions earlier can be of great help and will also save you the trouble of making changes later.

ABS – The ABS plastic which is generally used has the tendency to get scratch or scars that are clearly visible. During the cooling process, it also has problems sinking. And if you use an opaque plastic, then good luck with it.

Glass-filled nylon – Good thing about the glass – filled nylon is that it can resist many harsh solvents that that could damage other plastics like ABS and polycarbonate but its main con that causes problem is that Glass-filled nylon is extremely vulnerable to sinking. The material design is of no help.

Polycarbonate – Polycarbonate’s price is higher than that of ABS. It also has the tendency to sink. And if there is some kind of defect in your material then it can affect the plastic’s performance.

If you want more strength from the plastic, then you can combine the ABS & Polycarbonate for better results.

Next problem you face from the plastic is due to its color. The majority of the colors in which plastic is available only vary between dark brown or black. You don’t have many options to choose from. After its finishing, the outlook and appearance of the product depend on its final color. If you want, then you can have it spray painted, but that will increase your production cost.

Although the final cost of your product depends on all the investment the choice of plastic plays a major part. In general cases the price is low, but in extreme cases, it can revolve around the figure of $10000 to $12000.

If you too want injection mold then you should visit injection mould china factory. They are the best injection mold maker in China.  Injection mold china will provide you the best quality molds. You can visit them on the URL given below.

For more information, please refer to https://www.injectionmouldchina.com

How To Make Rapid Prototype Injection Molds

Klarm Mould

Plastic injection molding makes a very good option for people looking for plastic prototypes or few parts for evaluation and testing. In injection molding, molten plastic is forced in a cavity at high pressure to ensure no fills and to open the die.  The molding machine applies closing force with the right tooling thus closing up die with temperature cycling and abrasive effect of flowing plastic. To avoid any mistakes that could mean starting over the process can be pretty slow especially for complex geometrics.

rapid prototype injection mold
rapid prototype injection mold

Fortunately, there are different manufacturing technologies that compress lead-time for those who want to make or design the plastic prototypes. By looking at the manufacturing options, you will be in a better position to decide what the best way of making rapid prototype molds is depending on the project requirements you are working with. The rapid prototype technologies are never the same and the results may not be the same for all prototypes therefore.

Selective laser sintering

This manufacturing method involves heating of powder till the granules join. SLS is very similar to SLA considering that it makes 3D shape through creating layer by layer using laser plastering over powder for heating. It is however a technology that can be used for both metal and plastic molds and the accuracy levels are impressive. You can actually achieve fully functional parts using this technology as long as porosity is avoided by all means possible.

Fused deposition modeling

This technology of making the rapid prototype molds has the plastic filament extruded using a nozzle onto the support plate or platform before it is then heated to create sticky soft substance. Shapes are then built as necessary by successive layering before the right finishing is done for the final appearance to be achieved. Plastics like polystyrenes, polyamides and polycarbonates are available for FDM and the accuracy rates for this manufacturing method are high although they could vary from machine to machine.

Stereolithography apparatus

It is abbreviated SLA and it is a molding technology that uses UV laser to solidify liquid photopolymer. The laser passes over polymer surface to create a solid layer before the table is lowered to let more liquid cover the solidified layer and then laser scanning is done again. Once done, the SLA molds require washing and sanding for the removal of ridges between layers for enhanced accuracy.

Rapid injection molding

Injection molding is one of the fastest ways of making rapid prototype molds. You can have your parts in days saving you the slow nature of processes like EDM and grinding. The molds may not be that durable compared to hard steel parts but you will have then in same finish, fit as well as performance at reduced time and cost. When considering rapid prototyping, it is important to remember that not all plastics are suitable and the finish, fit and form may not be as good as those achieved by injection molding. As long as you know what the molds are for, you will manage to make the right manufacturing process.

When you work with the right injection mold maker in China, you will indeed have the kind of parts you need at the end of the day. Plastic injection molding China has its benefits and when you are informed it is easier to choose the right path for your prototypes.

For more information, please refer to https://www.injectionmouldchina.com.

Precision tooling

How the precision injection molds are made

Klarm Mould

In the injection molding process, parts are produced by injecting substances into a mold. Different types of materials, including metals, elastomers, and glasses are used in this process. Let’s know more about the making of precision injection mold.

Precision tooling
Precision tooling

For making parts, the material is put into a hot barrel where it cools down taking the shape of the mold. Normally, molds are made by expert mold makers using metals, such as aluminum and steel. Now, we will look at the important stages of the mold making process.

China Precision Molding
Injection molding in China is done with the help of the state-of-the-art technology. Expert mold makers manufacture molds that meet the needs of buyers from around the globe. The process uses applied robotics and inspection processes that are automatic. The companies have different precision molding methods that are followed in a controlled environment.

Product & Process Engineering
So, how are the parts and components created and refined? Well, experts make use of computer aided design apps for creating and refining parts. They also offer prototyping, such as SLS and SLA and Urethane Casting. But it depends on the company you are talking about. You have to get in touch with the company to know more about their product and process engineering techniques.

Solid Modeling
In solid modeling, engineers make use of 2D and 3D modeling technology in order to get the work done efficiently. For mold designing and analytical work, like stress analysis and element analysis, experts believe that sold modeling is a very good and cost-effective method. This method is also good for manufacturing stereo-lithography components for rapid tooling and first inspection.

Tool Manufacturing
Aside from solid modeling, the technology makes use of CAM and CAD apps. Aside from this, CNC and EDM technology is also used. The trained workforce is knowledgeable and committed for creating all types of parts and components that you can imagine. The tools can be used in the automotive or medical field, for instance.

Quality Control
As far as quality control goes, precision measurement is on the list of the most important things. The precision measurement of a reliable manufacturer is almost perfectly accurate. The quality control methods and the state-of-the-art machinery ensures that the requirements of the users are met.

Mold Assembly
The expertise and experience of a mold making manufacturer ensures that quality products are made that work according to the requirements of customers. The assembly options offered by most manufacturers are given below:

  • Applied Automation
  • Mechanical Bonding
  • Hot Stamping
  • Heat Staking
  • Pad Printing
  • Ultrasonic Welding
  • Business Systems Integration

The goal of any manufacturer is the customer satisfaction. And for this, they employ quality improvement processes.

So, this is how the precision injection molds are made. The process makes it a lot easier to make molds that are used to make components and parts. These parts are used in different industries. Even molds are used for making car parts all over the world.

Resource box: This article is originally posted from https://www.injectionmouldchina.com.

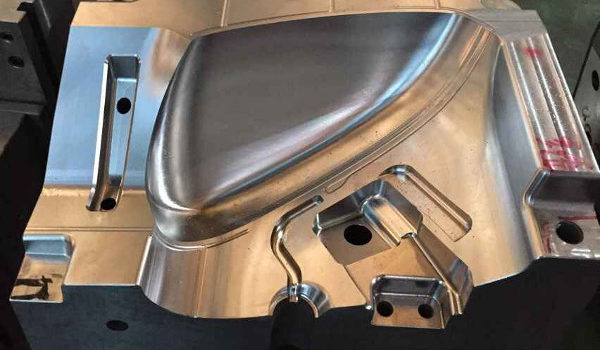

automobile injection mold

What Is A Quality Injection Mould Maker

Klarm Mould

An injection mould maker is a machine for producing parts by injecting at high pressure, usually plastic material into a mould. The plastic used are thermoplastic and thermosetting polymers. Material for moulding is conveyed into a heated barrel where it is mixed and then injected into a mould cavity where it hardens by cooling into the shape of the mould. Mould may be made of steel, aluminium and are themselves made with extreme precision so that the desired parts are created to match the design. Vice versa, those parts are also designed so that they are well suited  for injection moulding. The adaptability of injection moulding lies in this breadth of design consideration and possibilities, of both the injection mould maker in China and the item to be moulded.

automobile injection mold
automobile injection mold

Injection moulding finds application in almost all manufactured items, from plastic bottles to car parts.

  • A quality injection mould maker (person) should support his customer right from the concept stage to the mass production stage. He should know what questions to ask and anticipate where he is going to face difficulties in the moulding process while the part is being designed
  • A quality injection mould maker should be complete and integrated and yet have a variety of systems for different applications.
  • It would by virtue of being a quality item, be assisted by robotic systems.
  • They should be environmentally friendly, and have energy and space saving features.
  • The manufacturers should offer technical support and systems for factory automation.
  • Water circuits in a mould maker should not be looped as this leads to warpage.
  • The quality injection mould maker (person) should be present at the design stage of the part to anticipate difficulties in mould making and design.
  • Use of 3D rapid prototyping from 3D computer models is useful in injection moulding eg. To design water cooling channels along the contour of the mould which improves the quality of the parts and improves cycle times.
  • An internal storage memory for 50 molds is available
  • Fault diagnosis with alarm messages is possible
  • The command control centre should be shielded against magnetic interference.
  • A weekly schedule should be incorporated.
  • A quality injection mould maker that is driven by an electric motor has the following advantages over a hydraulic moulding machine
  1. A significant energy reduction of 40% to 50% is possible by electric compared to a hydraulic injection mould
  2. Stabilization of the molding process is achieved by use of the servo motor in the injection process
  3. Noise generation level is much lower.
  4. Molding cycle can be shortened by using different motors for different stages of the moulding cycle and running them in parallel, like opening, closing, injection, ejection, and weighing
  5. Injection speed can be increased
  6. Since no oil is used, it is an environmentally cleaner process.
  7. A digital display is always welcome
  • They should be low maintenance
  • A two year warranty which covers the replacement and or repair of any part that has a manufacturing defect.

Injection mold makers in China are supplying plastic injection moulding machines all over the world, at very competitive rates. They are also setting up offices all over the world to serve their customers better.

Resource box: This article is originally posted from https://www.injectionmouldchina.com.

Good Mold China pictures

Good Mold China pictures

Klarm Mould

A couple of good mold china photos I identified:

P1013571m
mold china
Image by Zi O-ne
Well now, we have a lengthy day beind us. I didn’t anticipate the post todays because IoS just shipped out a handful of days agon and I was certain the order will be stuck in customs, but to my surprize, Ryou just bashed home in 3 days. I did not make any box opening images and I strategy to make up for that, but dad was really curious about what I got and hurried me ^^
So Ryou is here!!!
He is Aiji’s twin brother, and I had planned to bring him house waaaay later, but IoS discontinueing the head and placing up a last sale was just tooooo tempting. I am so content for him thou!! I know it really is the very same mold but he was so different appropriate out of the box.
I allso need to buy a brand new body for him from dollzone, given that he is way more pink then the older head and will almost certainly not match anything older than a handful of months. I want him to have the same physique too.
So The painting had to be carried out these days, I had some time, considering that I only got a pair of wings to paint as commission, so I scrubbed off Aiji and just started to paint them at one time. Like performing the layers identically, except the last 1 exactly where there are the tiny modifications. Allso Ryou as a character is not all smiles, like Aiji, so I did my very best to not make him so &quothappy&quot but to leave space for some expression alterations.
So right here are the twins! Aiji and Ryou! They will have the exact same colored eyes but they are nevertheless in the producing by the wonderfull NiuKy+ and Ryou’s hair is stuck in the china post ^^ (A black fur wig…the head actually outrun the wing)

Plastic Injection Mold – Time And Cash Saving Strategy

Plastic Injection Mold – Time And Cash Saving Strategy

Klarm Mould

You can save funds and time in producing plastic injection mold by using hard milling procedures. When you are not difficult milling but, you may discover it difficult to compete with other firms and put oneself at a disadvantage. There are a quantity of motives why it would be ideal to utilize hard milling methods. You can save a lot of time and income since it calls for lesser time to set up.

It removes a complete lot of EDM work and hand fitting, particularly of contoured shut-off surfaces. It produces a surface that’s nearer to the CAD model. You can even eradicate stoning and polishing which would otherwise take a complete lot of time and labor costs. It could cut down on the required number of grinding steps. Perform on plastic injection mold is hastened and delivery dates are shortened.

You can take benefit of a quantity of positive aspects like having a wider margin of income and having the capacity to steadily meet your delivery dates when you use difficult milling. This will support you reduce the time and expenses necessary to make plastic injection mold. Now, let’s go to CNC milling apparatus. Do you really want specialised CNC milling machines? Nicely, it actually depends on how significant you are about tough milling.

CNC milling machines are fairly pricey that is the cause why you need to think genuinely carefully if you actually want it. It could expense you close to 5 hundred thousand dollars and eventhough you can technically get by with no it, getting one would be an advantage. For some men and women, a Bridgeport kind of gear would be sufficient. A CNC machine is the best for higher quantity manufacturing. It is robust enough to resist high spindle speeds, fast feed rates and persistent vibrations developed by the machines.

You could uncover various sorts of premium top quality gear and machines which are employed for challenging miling and high velocity milling. A CNC machine utilized for hard milling need to have a column and base that’s heavy. A spindle that is core cooled. It must also have box methods with linear roller bearings, ball screws that are twin supported and thermal stability and a inflexible structure.

Certain computer software would also be required to sustain high top quality manage. A CAD/CAM application that is especially for difficult milling is entirely various from programs utilized in soft milling. The incorrect type of software program causes the gear to move in a jumpy way and shorten tool life. The preferred accuracy and surface finish will also be difficult to accomplish. The correct application would guarantee precise cutting that’s specified within the CAD model. It controls how the cutter enters and finishes a reduce. The software plan maintains a steady and fixed chip load. The complete procedure is effectively carried out with the correct software application.

The spindle moreover has an important function in all this. The spindle protects the integrity of the device. It has to withstand higher speeds. Direct drive spindles are ideal for tough milling. Gear and belt spindles aren’t suggested. It is furthermore critical to be able to handle the heat and vibration. The spindle is the link between the equipment and cutter and when the spindle is not working appropriate, then the complete procedure of producing the appropriate plastic mold will endure.

If you want to discover out more facts on plastic injection mold, never wait and go to Matt Cod’s internet site on injection molded plastics to inform yourself, evaluate gives, read testimonials, understand all the details and verify exactly where to shop.
